Guitar learning guide
The CAGED system for guitar, explained
CAGED uses five familiar open-chord forms as landmarks for finding the same harmony in different neck regions. Learn what the labels mean, where the system helps and how to connect shapes without treating them as isolated boxes.
By FretShuffle · Published 20 July 2026

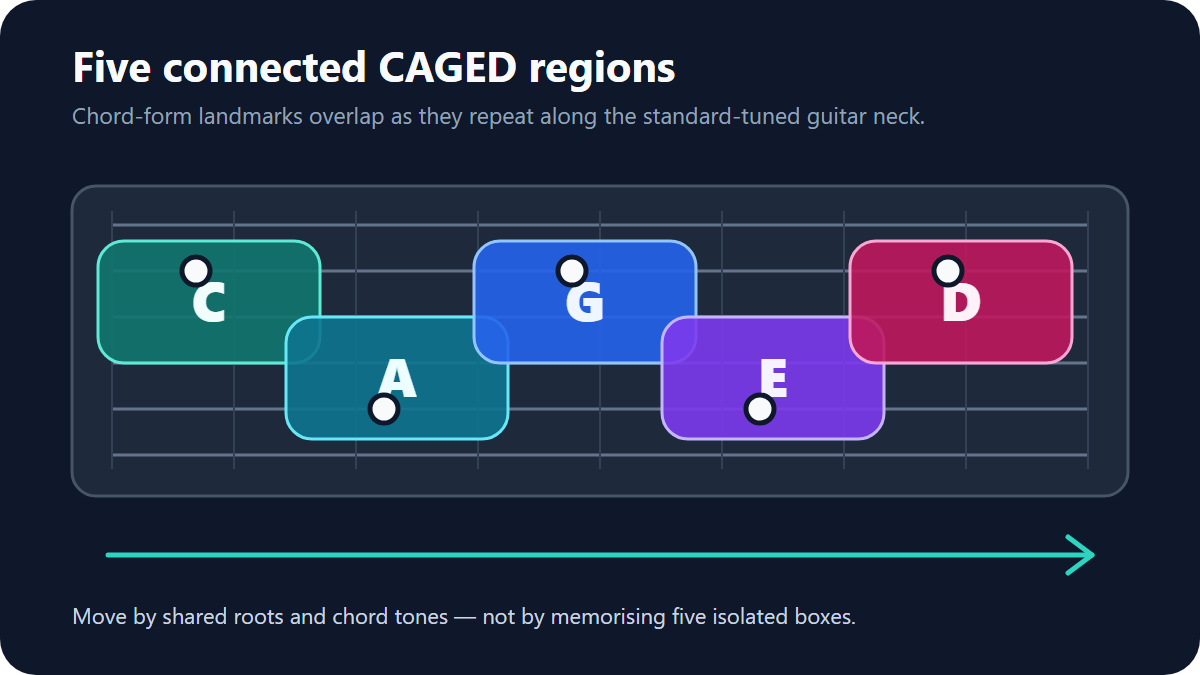

What the CAGED system actually maps
CAGED begins with the open C, A, G, E and D major-chord forms. Move one of those forms away from the nut, replace the open strings with fretted notes where needed, and its interval structure can describe the same chord quality from another root.
The letters are labels for connected fretboard regions, not five chords that must always be played in that written order. The forms cycle C–A–G–E–D, but the first shape you encounter depends on the key and starting register.
FretShuffle's diagrams assume standard E–A–D–G–B–E tuning. Alternate tunings change the familiar root locations and geometry, so the same maps do not transfer unchanged.
Find roots and chord tones before memorising outlines
Start with the root
A form becomes useful only when you know which note controls its name. Find every root in the shape, then check how the lowest useful root moves into the next region.
Compare the five movable forms in the major guitar chord reference.
Reduce the form to 1–3–5
A major triad contains root, major 3rd and perfect 5th. Locate those functions before attempting a full grip. A three-string triad often communicates the harmony more clearly and moves more easily than all six strings.
Connect two overlapping forms at a time
Neighbouring forms share notes and occupy overlapping frets. Hold one key and chord quality steady, choose two adjacent forms, and identify the nearest common root, 3rd or 5th. Move between those targets before attempting a five-shape run.
This approach prevents the labels from becoming separate boxes. When two regions feel connected, add the next boundary instead of restarting with five complete diagrams.
The 10-minute CAGED Connection session keeps one key and family fixed while presenting all five regions in neck order.
How chords, arpeggios and scales share a region
A CAGED chord form highlights a small set of harmonic targets. Arpeggios repeat those chord tones individually. A related scale adds passing and colour tones around them. Seeing all three in one region helps a phrase leave a chord tone and return deliberately.
The relationship does not mean every scale works over every chord. Key, chord function and musical context still determine which notes support the harmony. Start by comparing the major chord forms with the major scale positions in the same key.
A practical first week with CAGED
- Choose one major key and find its roots on strings six and five.
- Locate one nearby CAGED form and name its root, 3rd and 5th.
- Reduce the form to a comfortable three-string voicing.
- Find the adjacent form and cross through one shared chord tone.
- Add nearby major-scale notes and create a short phrase.
- Use the CAGED practice routine only after those two regions make sense.
What CAGED does not replace
CAGED supplies landmarks; it does not replace note names, intervals, harmony, rhythm, ear training or learning real music. Use it to reduce the search area, then let musical function and sound decide what to play. The FretShuffle methodology explains how the application calculates notes, intervals and movable answers behind these labels.
Common questions
Guitar learning FAQ
What does CAGED stand for on guitar?
CAGED names five familiar open major-chord forms: C, A, G, E and D. In standard tuning, those forms can act as movable landmarks for locating the same chord tones and nearby scale notes in different neck regions.
Do I need to play every CAGED shape as a full barre chord?
No. Complete C-, G- and some D-derived forms can be awkward or musically unnecessary. Use the full outline to see the root, 3rd and 5th, then play a smaller triad or partial voicing that fits the sound and movement you need.
Should I learn CAGED chords or scales first?
Start with the chord forms because they make roots and chord tones visible. Add the surrounding scale notes once you can locate the form without a diagram. The scale pattern and chord form occupy the same region, but they are not the same object.
Sources and further reading
FretShuffle cross-checks its explanations against these educational and first-party references. The diagrams and practice instructions above are original summaries.
